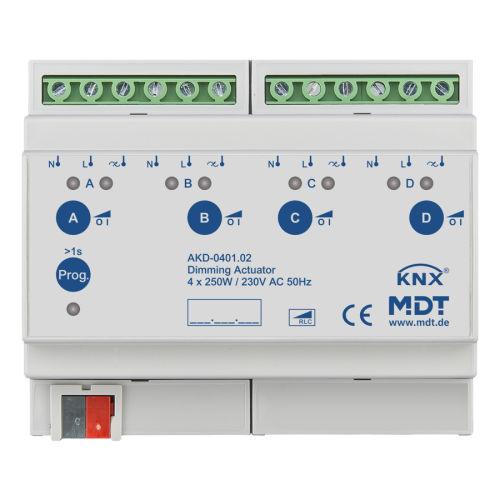

The MDT Dimming Actuator receives KNX/EIB telegrams and dimms/switches up to 4 independent electrical loads. Each output can be operated manually via a push button.
Production in Germany, certified according to ISO 9001
Comprehensive application
Optimized for dimmable LED lights > 2W
For HV- Halogen lights and NV- Halogen lights with transformer/EVG
Operation in leading-edge or trailing-edge selectable
Active power measurement
Integrated diagnostic function with plain text message
Overload-/short circuit- and temperature protection with message
Time functions (switch-on/switch-off delay, staircase light function)
Automatic time dependent dimming
Softstart, global and individual dimming speed
Day/Night function
Parallel operation of 2 channels with 500W total power output
Push Button for manual operation and indicator for each channel
Separate L-/N connections for each channel (different phases possible L1, L2, L3)
