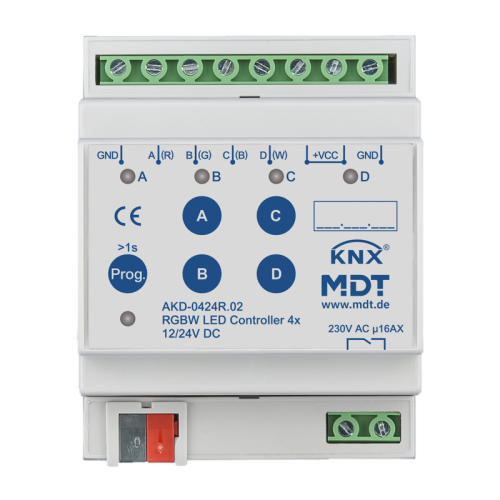

The MDT LED Controller receives KNX/EIB telegrams and controls 12/24V RGBW LED stripes.
- Production in Germany certified according to ISO 9001
- Comprehensive function extension
- Absolute and relative dimming for HSV colour space and RGB
- Tunable White color temperature control
- Selectable dimming curve and PWM frequency up to 1000Hz
- Global and individual dimming speeds
- Individual and predefined sequences (e.g. TV Simulator)
- Repetition of sequences for automatic colour control
- Suitable for 12/24V CV LED (Common Anode)
3A for each color channel (flush mounted device)
4A for each color channel (MDRC device)
- Selectable load distribution:
AKD-0424R.02: 4 channels each 4A or 1 ch. 7,0A and 3 ch. 3,0A
- Parallel operation of 2 channels
- Operating modes: 4 x White, RGB, RGBW, Tunable White
- Automatic color temperature control Dim2Warm
- Dynamic daylight control HCL
(Human Centric Lighting)
- Automatic time-dependent dimming
- Day/night function
- Overcurrent and overtemperature supervision
- Intelligent 16A C-Load Relay output to control external
LED power supply (not AKD-0424R2.02)
- 3 years warranty
