Squaring the circle. Infrared presence detector Presence Control PRO IR Quattro KNX for indoors, ideal for small offices, store, service and utility rooms, washrooms and WCs, installation height up to 8 m, with digital BUS interface for controlling 4 lighting channels and HVAC, 1760 switching zones for excellent detection quality, square presence detection zone covering 16 m2, mechanically scalable.
| General |

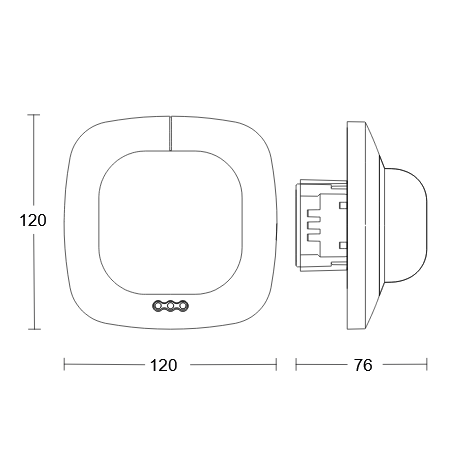

| Dimensions (L x W x H) |
75 x 120 x 120 mm |
| With motion detector |
Yes |
| Manufacturer's Warranty |
5 years |
| Settings via |
ETS software, Remote control, Bus, Smart Remote |
| With remote control |
No |
| Type |
Presence detector |
| Application, place |
Indoors |
| Application, room |
one-person office, conference room / meeting room, duty room, recreation room, changing room, function room / ancillary room, kitchenette, Indoors |
| Sensor technology |
| Technology, sensors |
Photo-cell controller, passive infrared |
| Mounting height |
2,50 – 8,00 m |
| Mounting height max. |
8,00 m |
| Optimum mounting height |
2,8 m |
| Sneak-by guard |
Yes |
| Capability of masking out individual segments |
No |
| Electronic scalability |
No |
| Mechanical scalability |
Yes |
| Reach, radial |
5 x 5 m (25 m²) |
| Reach, tangential |
7 x 7 m (49 m²) |

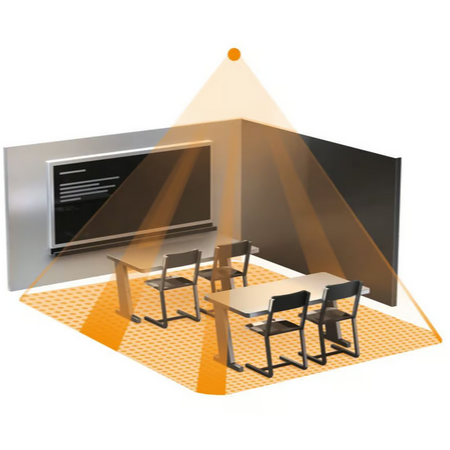

| Reach, presence |
4 x 4 m (16 m²) |
| Detection angle |
360 ° |
| Angle of aperture |
100 ° |
| Twilight setting |
10 – 1000 lx |
| Time setting |
10 s – 1092 Min. |
| Basic light level function |
Yes |
| Main light adjustable |
0 - 100 % |
| Twilight setting TEACH |
Yes |
| Constant-lighting control |
Yes |
