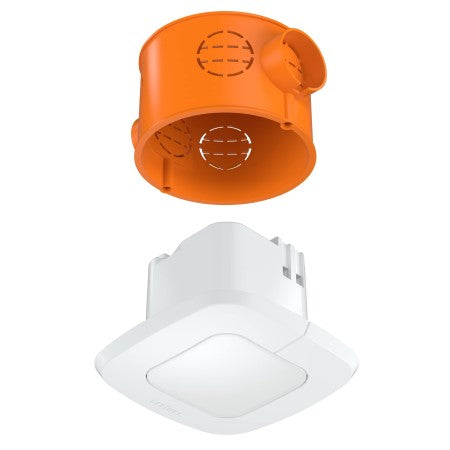

Noticeably Inconspicuous. IR Quattro SLIM XS KNX, the extra-slim presence detector in concealed-box format. Fits into any standard concealed box. Overall height of just 6 mm. High-precision 360° infrared senor with globally unique retina lens and 16 sq.m square presence detection zone (4 x 4 m). Adjustment via remote control or Smart Remote.
| General |

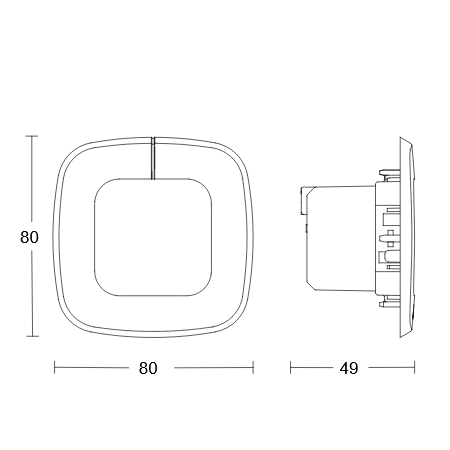

| Dimensions (L x W x H) |
49 x 80 x 80 mm |
| With motion detector |
Yes |
| Manufacturer's Warranty |
5 years |
| Settings via |
ETS software, Remote control, Bus, Smart Remote |
| With remote control |
No |
| Type |
Presence detector |
| Application, place |
Indoors |
| Application, room |
one-person office, hotel room, care room, function room / ancillary room, WC / washroom, Indoors |
| Sensor technology |
| Technology, sensors |
passive infrared, Light sensor |
| Mounting height |
2,50 – 4,00 m |
| Mounting height max. |
4,00 m |
| Optimum mounting height |
2,8 m |
| Sneak-by guard |
Yes |
| Capability of masking out individual segments |
No |
| Electronic scalability |
No |
| Mechanical scalability |
No |

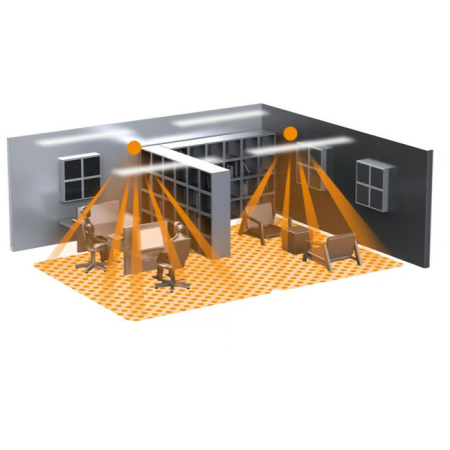

| Reach, radial |
4 x 4 m (16 m²) |
| Reach, tangential |
4 x 4 m (16 m²) |
| Reach, presence |
4 x 4 m (16 m²) |
| Detection angle |
360 ° |
| Angle of aperture |
71 ° |
| Twilight setting |
10 – 1000 lx |
| Time setting |
60 s – 255 Min. |
| Basic light level function |
Yes |
| Main light adjustable |
0 - 100 % |
| Twilight setting TEACH |
Yes |
| Constant-lighting control |
Yes |
