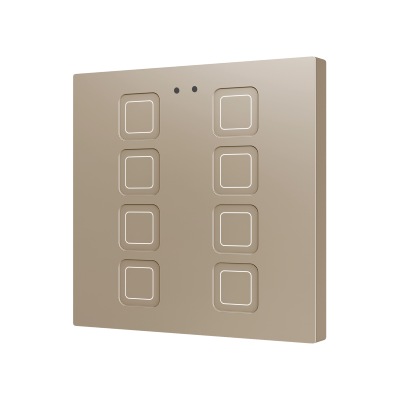

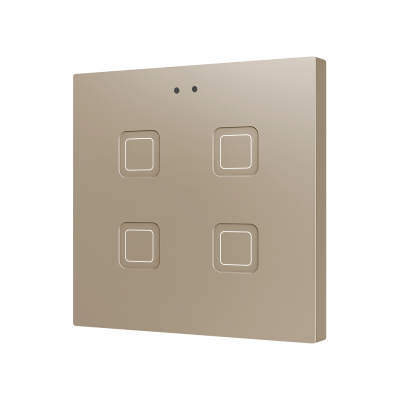

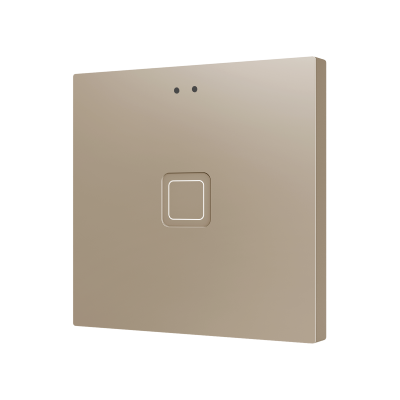

Polycarbonate capacitive touch switches with customisable icons. 1, 2, 4, 6, or 8 button versions all available with backlit icons that adapt according to ambient luminosity and proximity sensor. Tecla incorporates an internal temperature probe and thermostat as well as 2 analog-digital inputs to be configured as binary inputs, sensors, push buttons, temperature probes or motion detectors. Accessories: temperature probe and motion sensor.
FEATURES
- Polycarbonate surface with 1/2/4/6/8 touch areas with backlighted customizable icons
- Available in the following colors: silver (RAL 9006), anthracite black (RAL 9004), white (RAL 9016) and gloss white (RAL 9003)
- 2 analog/digital inputs
- Thermostat
- Built-in temperature sensor
- Touch confirmation through sound
- Luminosity and proximity sensor
- Total data saving on KNX bus failure
- Integrated KNX BCU (TP1-256)
- Dimensions 82.5 x 82.5 x 33.1 mm (it protrudes 9.5 mm from the wall)
- Flush mount on back box
- Conformity with the CE, UKCA, RCM directives (marks on the back side)
