Zennio offer an vast array of KNX devices which are designed to maximise the functionality that can be efficiently deployed within a KNX system, which included a versatile lighting portfolio. We are excited to finally be able to talk about Zennio’s next generation of Lumento LED/RGB dimmers which are now available and includes a new and improved din rail mounted DX4, as well as the flush mounted X2 / X3 & X4.
New features include an increase in the maximum current per channel on the flush mounted variants from 2.5A to 8A and 6A to 10A on the DX4 V2 device. Another improvement made is the possibility to combine channels to increase the maximum current per device for higher loads. For example on the DX4 V2 there is now the option to combine all 4 channels to allow a maximum current of 24A. Each of the new devices also includes a relay channel to control the LEDs power supply or for independent use.
Key features are all new devices are listed below.

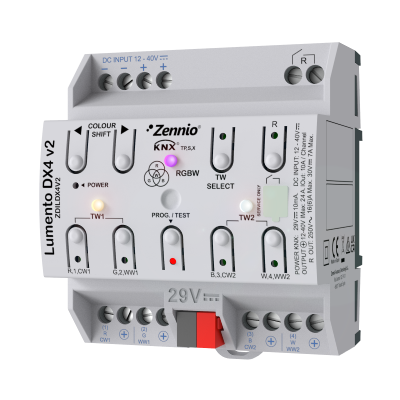

Lumento DX4 v2
Key features:
- 4 constant voltage configurable channels (combinable independent channels, RGBW channel, RGB+W channels and combinable TW channels)
- 1 relay to control the LEDs power supply or for independent use
- Supports KNX Data Secure
- Master Light control
- External 12-40 VDC power supply
- Manual output operation with push button and LED status indicator
- Dimensions 67 x 90 x 79 mm (4.5 DIN units)
Product Link: Click Here
Lumento X2 v2
Key features:
- 2 constant voltage configurable channels (combinable independent channels and TW channel)
- 1 relay to control the LEDs power supply or for independent use
- Supports KNX Data Secure
- Master Light control
- External 12-40 VDC power supply
- Manual output operation with push button and LED status indicator
- Dimensions 137.4 x 55 x 30.5 mm
- Surface-mounted inside panels, distribution boxes or false ceiling
Product Link: Click Here
Lumento X3 v2
Key features:
- 3 constant voltage configurable channels (combinable independent channels, RGB channel and TW channel)
- 1 relay to control the LEDs power supply or for independent use
- Supports KNX Data Secure
- Master Light control
- External 12-40 VDC power supply
- Manual output operation with push button and LED status indicator
- Dimensions 137.4 x 55 x 30.5 mm
- Surface-mounted inside panels, distribution boxes or false ceiling
Product Link: Click Here

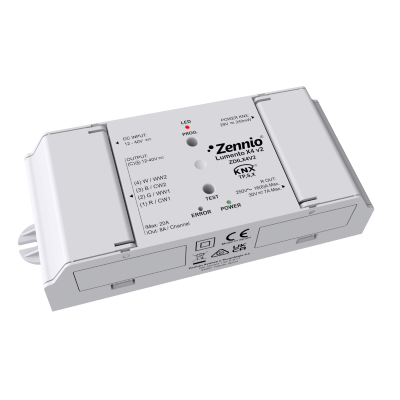

Lumento X4 v2
Key features:
- 4 constant voltage configurable channels (combinable independent channels, RGB channel and TW channel)
- 1 relay to control the LEDs power supply or for independent use
- Supports KNX Data Secure
- Master Light control
- External 12-40 VDC power supply
- Manual output operation with push button and LED status indicator
- Dimensions 137.4 x 55 x 30.5 mm
Product Link: Click Here
